Socket Screws

Newlink hardware are able to offer a full range of socket screws, in standard and Non-standard sizes, lengths, materials, and grades.

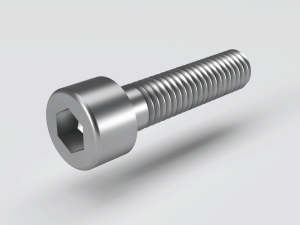

Hexagon socket head cap screw Hexagon socket head cap screw
  • Steel 12.9
  • Steel 10.9
  • Steel 8.8
  • Stainless steel A2-70
  • Stainless steel A4-70
  • Stainless steel A4‐80

Additional: Metric Fine

Hexagon socket head cap screw UNC/UNF 1960 series Hexagon socket head cap screw UNC/UNF 1960 series ≈ASME B18.3
  • Steel 12.9
  • Stainless Steel A2
Hexagon socket head cap screw UNC/UNF 1936 series Hexagon socket head cap screw UNC/UNF 1936 series ≈ASME B18.3
  • Steel Grade 8
  • Steel 12.9
  • Stainless Steel A2 (AISI304/18-8)
  • Stainless Steel A4 (AISI316/10-10)

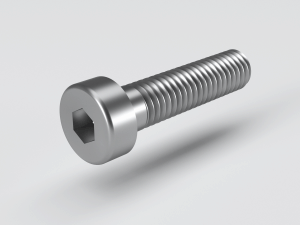

Hexagon socket low head cap screw Hexagon socket low head cap screw DIN 7984
  • Steel 8.8
  • Steel 10.9
  • Stainless steel A2
  • Stainless steel A4

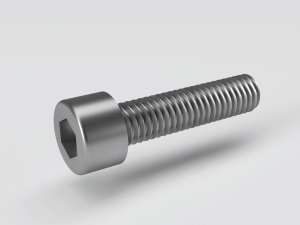

Hexagon socket head fully threaded cap screw Hexagon socket head fully threaded cap screw ≈DIN 912/ISO 4762
  • Steel 8.8
  • Steel 12.9*
  • Stainless Steel A2-70
  • Stainless Steel A4-70
  • Nylon 6.6

*Limited range

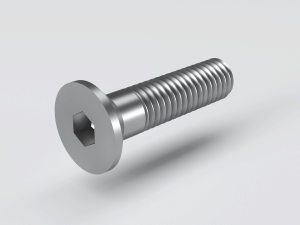

Hexagon socket countersunk head screw Hexagon socket countersunk head screw DIN 7991/ISO 10642
  • Steel 10.9
  • Steel 12.9*
  • Steel 8.8*
  • Stainless steel A2
  • Stainless steel A4

Additional: ASME B18.3 – BS 2470

*Available in limited sizes

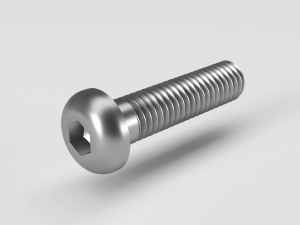

Hexagon socket button head screw Hexagon socket button head screw ISO 7380-1 - ASME B18.3
  • Steel 10.9
  • Steel 12.9*
  • Stainless Steel A2
  • Stainless Steel‐ A4

*12.9 Available in limited sizes*

Additional – Unified

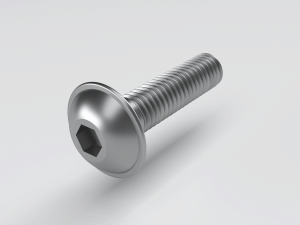

Hexagon socket button head screw with flange Hexagon socket button head screw with flange ISO 7380-2 Steel - 10.9 - Stainless steel A2 ‐ A4
  • Steel 10.9
  • Stainless Steel A2
  • Stainless Steel A4

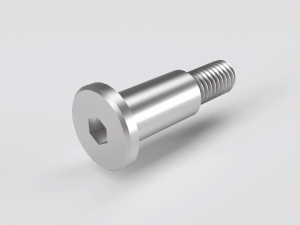

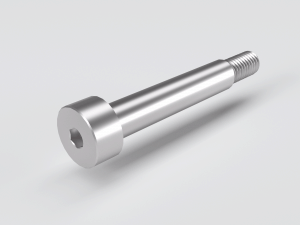

Hexagon socket head shoulder screw f9/h8 Hexagon socket head shoulder screw f9/h8 ISO ≈7379 - ASME B18.3
  • Steel 12.9 – f9
  • Steel 12.9 – h8*
  • Steel Grade 5 (Unified)
  • Stainless Steel A2
  • Stainless Steel A4

*Limited range
Hexagon socket head shoulder screw low head Hexagon socket head shoulder screw low head
  • Steel – EN 1.7220
  • Stainless steel – EN 14301
  • e9 – g6 – h7 Tolerances

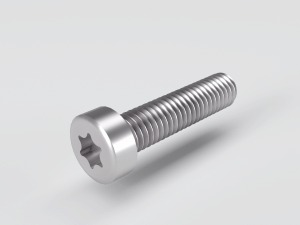

Hexalobular head cap screw Hexalobular head cap screw ISO 14579 (Standard) ISO 14580 (Low head)*
  • Steel 8.8
  • Stainless Steel A2-50
  • Stainless Steel A4

*ISO 14580 in A2 only

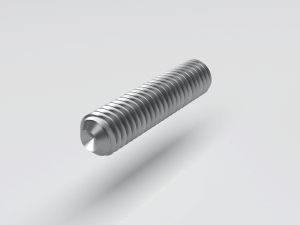

Hexagon socket set screw with cup point Hexagon socket set screw with cup point DIN 916/ISO 4029
  • Steel – 45H
  • Stainless Steel A2
  • Stainless Steel A4



Additional: Metric fine≈ DIN 916 – ASME B18.3 – BS 2470
Hexagon socket set screw with flat point Hexagon socket set screw with flat point DIN 913/ISO 4026
  • Steel 45H
  • Stainless Steel A2
  • Stainless Steel A4

Additional: Metric fine≈ DIN 913 – ASME B18.3

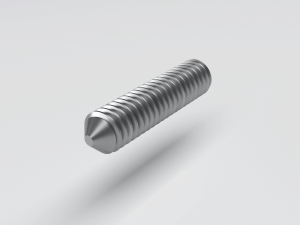

Hexagon socket set screw with cone point Hexagon socket set screw with cone point DIN 914/ISO 4027 Steel - 45H - Stainless steel - A2 ‐ A4
  • Steel 45H
  • Stainless Steel A2
  • Stainless Steel A4

Additional: Metric fine≈ DIN 914 – ASME B18.3

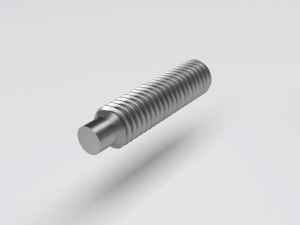

Hexagon socket set screw with dog point Hexagon socket set screw with dog point DIN 915/ISO 4028 Steel - 45H - Stainless steel - A2 ‐ A4
  • Steel 45H
  • Stainless Steel A2
  • Stainless Steel A4

Additional: ASME B18.3
