Dowels & Pins

Newlink hardware are able to supply solid dowel pins, and extractable dowel pins both in metric and imperial sizes. In addition we can source or manufacture to your requirements to the relevant DIN/ISO specifications.

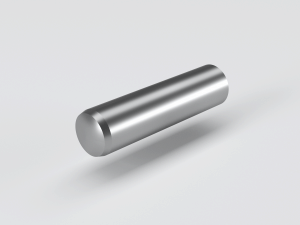

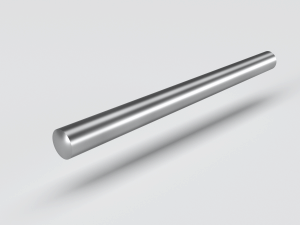

Parallel dowel pin Parallel dowel pin DIN 7/ISO 2338
  • Free cutting steel
  • Stainless steel A1/A2
  • Stainless steel A4
  • Bespoke sizes available to your drawings

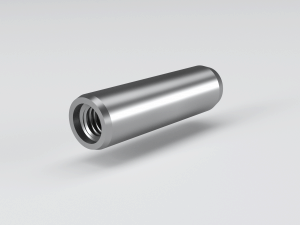

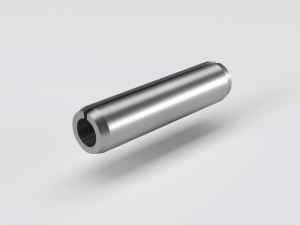

Parallel dowel pin - with internal thread hardened Parallel dowel pin - with internal thread hardened DIN 7979 D/ISO 8735 A
  • Through hardened & ground steel (m6) -100Cr6, through hardened to 58-62HRc.

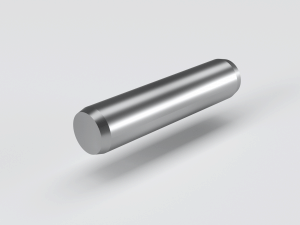

Parallel dowel pin (Hardened - tolerance m6 & h6*) Parallel dowel pin (Hardened - tolerance m6 & h6*) DIN 6325/ISO 8734-A
  • Through hardened & ground steel (m6) – 100Cr6, through hardened to 58-62HRc.
  • *h6 tolerance limited on sizes
  • Bespoke sizes available to your drawings

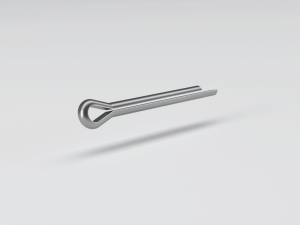

Split pin (cotter pin) Split pin (cotter pin) DIN 94/ISO 1234
  • Steel
  • Stainless steel A2
  • Stainless steel A4
  • Brass
  • Copper

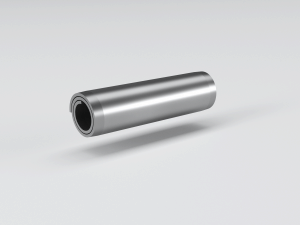

Spirol pin (coiled) - Standard duty Spirol pin (coiled) - Standard duty ISO 8750/DIN 7343 <
  • Spring steel – 420-560 HV30
  • Stainless steel ≈ ISO 8750/DIN 7343

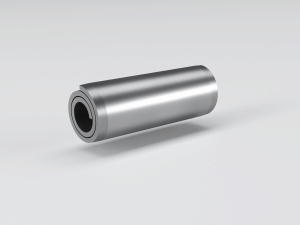

Spirol pin (coiled) - Heavy duty Spirol pin (coiled) - Heavy duty ISO 8748/DIN 7344
  • Spring steel – 420-560 HV30

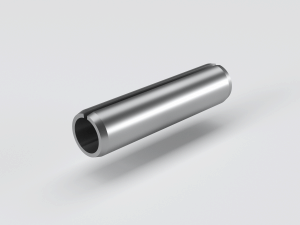

Slotted spring pin - Light duty Slotted spring pin - Light duty ISO 13337/DIN 7346
  • Spring steel – 420-560 HV30
Slotted spring pin - Heavy duty Slotted spring pin - Heavy duty ISO 8752/DIN 1481
  • Spring steel – 420-560 HV30
  • Stainless steel – ≈ ISO 8752/DIN 1481
Taper pin Taper pin ISO 2339 B/DIN 1 B
  • Free cutting steel
  • Stainless steel A1

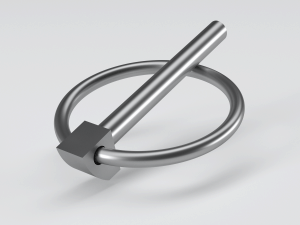

Linch pins Linch pins
  • Mild steel – zinc & yellow finish
  • Stainless steel 304
